Picap si radio incorporat, anii 62,63

Country: Germany
Manufacturer / Brand: Rosita, Theo Schmitz GmbH; Paderborn
Year: 1963/1964 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECL86 EM84 EZ80
Principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s) 10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker 3 Loudspeakers
Power out 2.5 W (unknown quality)
from Model: Opal 63 Ch = 24101 - Rosita, Theo Schmitz GmbH
Material Wooden case

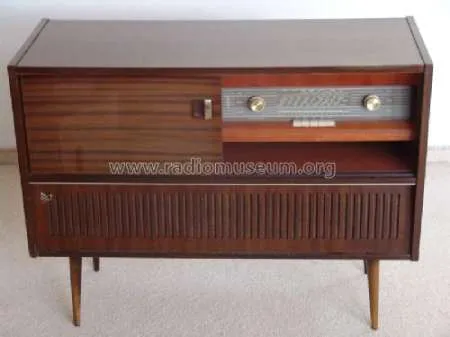

Shape Console with Push Buttons.
Dimensions (WHD) 970 x 760 x 400 mm / 38.2 x 29.9 x 15.7 inch
Notes Rundfunk-Spezial-Chassis = 24101

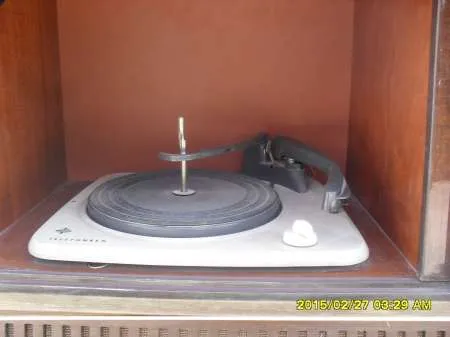

Phono-Chassis = Telefunken TW504.
Net weight (2.2 lb = 1 kg) 32 kg / 70 lb 7.8 oz (70.485 lb)
External source of data Erb
Source of data Handbuch VDRG 1963/1964 / Radiokatalog Band 2, Ernst Erb
